SKU: UKT215/HE2315

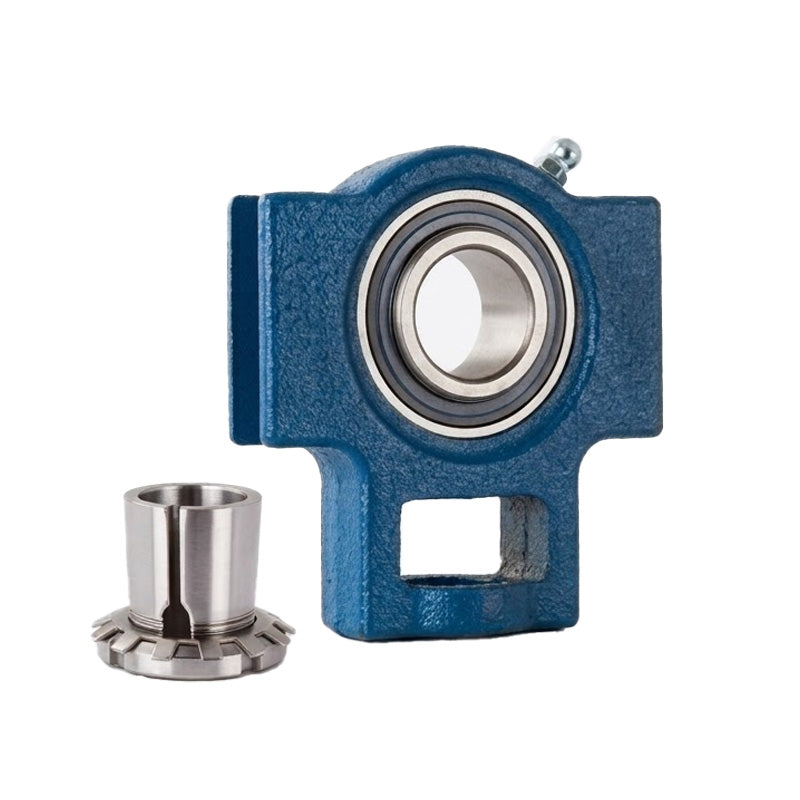

UKT215/HE2315 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-1/2 inch Shaft
- Regular price
- €230.41 ex VAT
- Sale price
- €230,41
- Regular price
-
Not in stock
Quantity Price Breaks
3
€205.06
4
€193.54
9
€191.24
19
€188.94
49
€186.63
99
€184.33
499
€172.81
999
€170.50
1999
€168.20
2999
€165.90
4999
€161.29
SKU:
UKT215/HE2315
UKT215/HE2315 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-1/2 inch Shaft
- Regular price
- €230.41 ex VAT
- Sale price
- €230,41
- Regular price
-
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
Technical
| d | = | 2-1/2 inch |
| o | = | 1-17/64 inch |
| g | = | 53/64 inch |
| p | = | 4-3/8 inch |
| q | = | 2-3/4 inch |
| s | = | 1-39/64 inch |
| b | = | 4-49/64 inch |
| k | = | 1-1/32 inch |
| e | = | 5-15/16 inch |
| a | = | 6-37/64 inch |
| w | = | 9-9/64 inch |
| j | = | 2-3/4 inch |
| l | = | 1-57/64 inch |
| h | = | 5-33/64 inch |
| t | = | 3-57/64 inch |
| B1 | = | 2.874 inch |
| Bearing no | = | UK215 |
| HE2315 | = | Housing no |
| T215 | = | Weight |
| 7.52 kg | = | N/A |
