SKU: UKT216/H2316

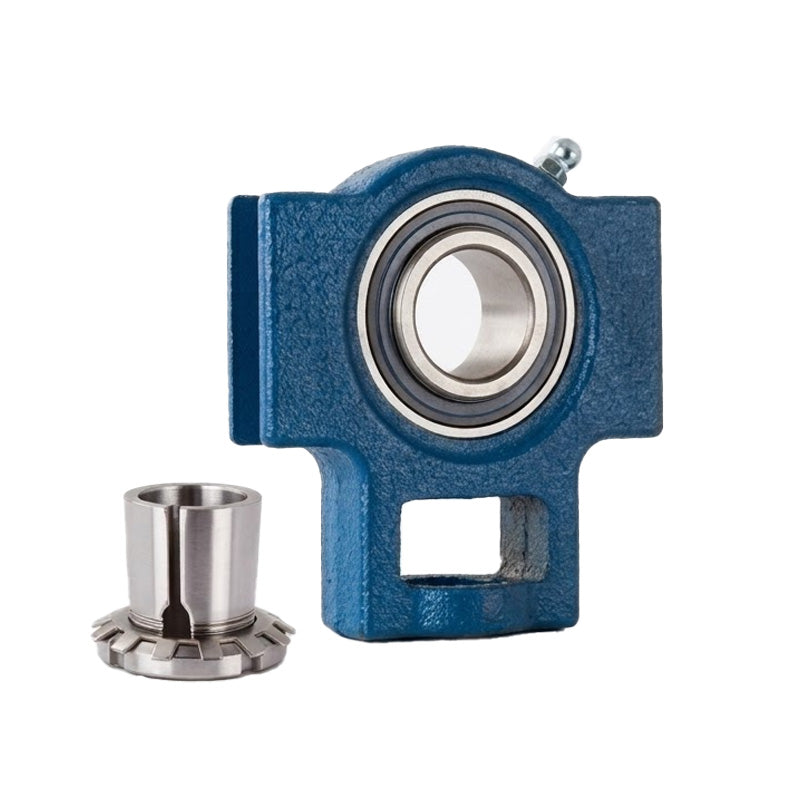

UKT216/H2316 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 70mm Shaft
UKT216/H2316 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 70mm Shaft
Regular price
€299,34
ex VAT
Regular price
Sale price
€299,34
ex VAT
In stock
Price Break
3+
€227,48
4+
€214,70
9+
€212,15
19+
€209,59
49+
€207,04
99+
€204,48
499+
€191,70
999+
€189,14
1999+
€186,59
2999+
€184,03
4999+
€178,92
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UKT
Technical
Technical
| d | 70mm |
|---|---|
| o | 32mm |
| g | 21mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| k | 26mm |
| e | 165mm |
| a | 184mm |
| w | 235mm |
| j | 70mm |
| l | 51mm |
| h | 140mm |
| t | 109mm |
| B1 | 78mm |
| Bearing no | UK216;H2316 |
| Housing no | T216 |
| Weight | 8.56 kg |
