SKU: UKT217/H2317

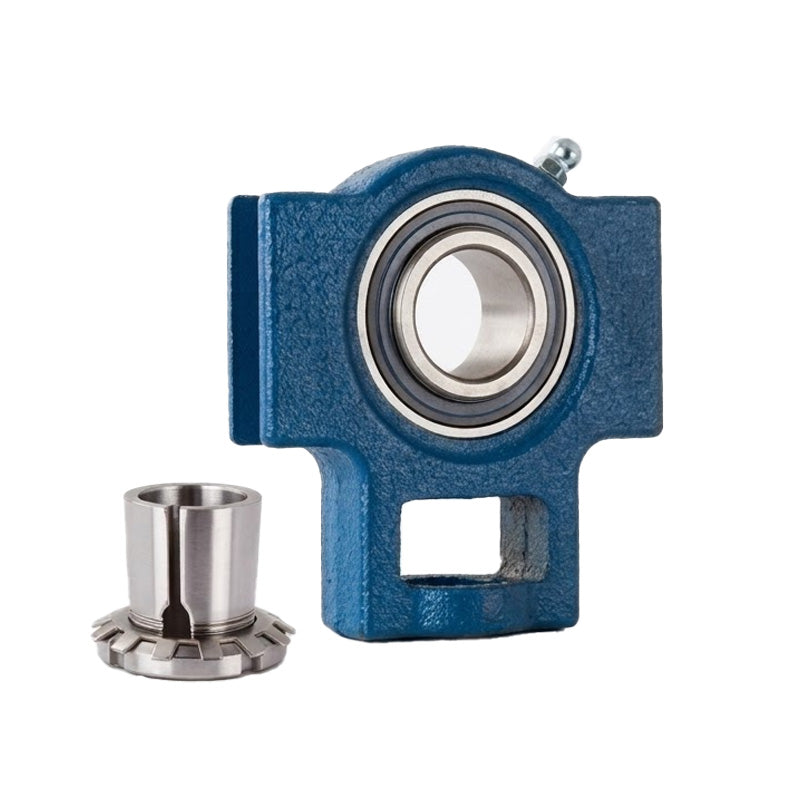

UKT217/H2317 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 75mm Shaft
UKT217/H2317 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 75mm Shaft
Regular price
€332,29
ex VAT
Regular price
Sale price
€332,29
ex VAT
In stock
Price Break
3+
€252,53
4+
€238,34
9+
€235,50
19+
€232,67
49+
€229,83
99+
€226,99
499+
€212,80
999+
€209,97
1999+
€207,13
2999+
€204,29
4999+
€198,62
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UKT
Technical
Technical
| d | 75mm |
|---|---|
| o | 38mm |
| g | 29mm |
| p | 124mm |
| q | 73mm |
| s | 48mm |
| b | 157mm |
| k | 30mm |
| e | 173mm |
| a | 198mm |
| w | 260mm |
| j | 73mm |
| l | 54mm |
| h | 162mm |
| t | 113.2mm |
| B1 | 82mm |
| Bearing no | UK217;H2317 |
| Housing no | T217 |
| Weight | 11.38 kg |
