SKU: USEHE209-SNR

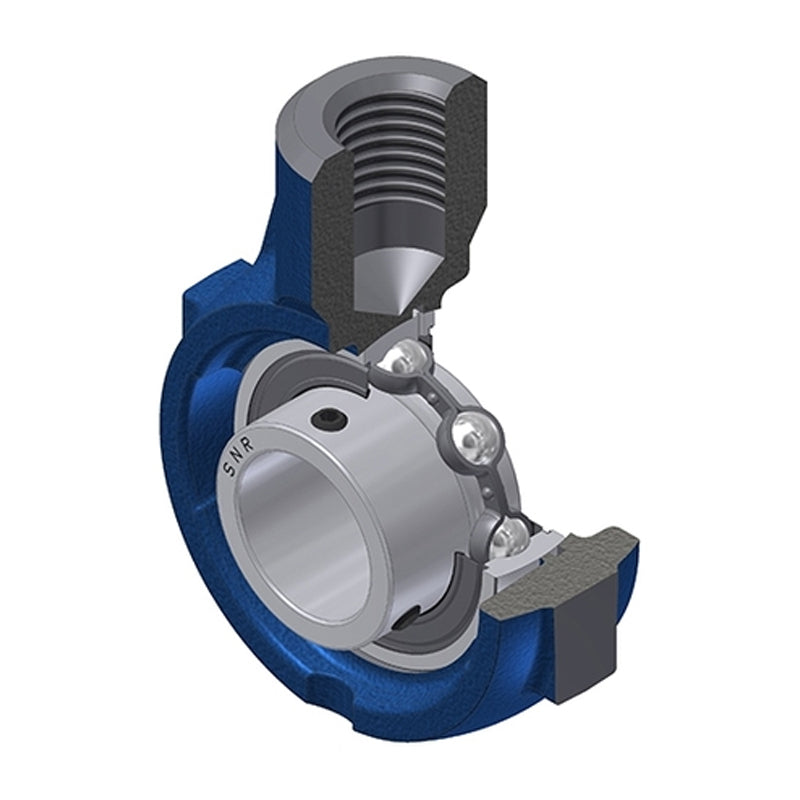

SNR USEHE209 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Not in stock
Quantity Price Breaks
3
€40.74
4
€38.46
9
€38.00
19
€37.54
49
€37.08
99
€36.62
499
€34.34
999
€33.88
1999
€33.42
2999
€32.96
4999
€32.05
SKU:
USEHE209-SNR
SNR USEHE209 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Description
FND92FY7ZI
Technical

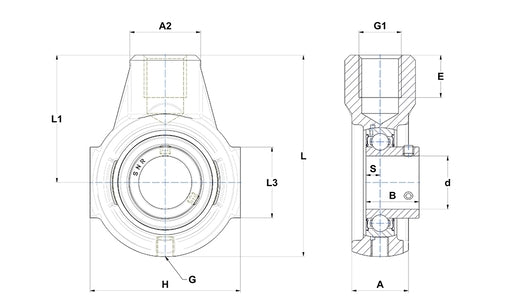

| --- | = | Dimensions |
| Shaft diameter | = | 45mm |
| A | = | 40mm |
| A2 | = | 40mm |
| B | = | 41.2mm |
| E | = | 24mm |
| H | = | 110mm |
| L | = | 145mm |
| L1 | = | 90mm |
| L3 | = | 45mm |
| S | = | 10.2mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.85 kg |
