SKU: WH12-MB

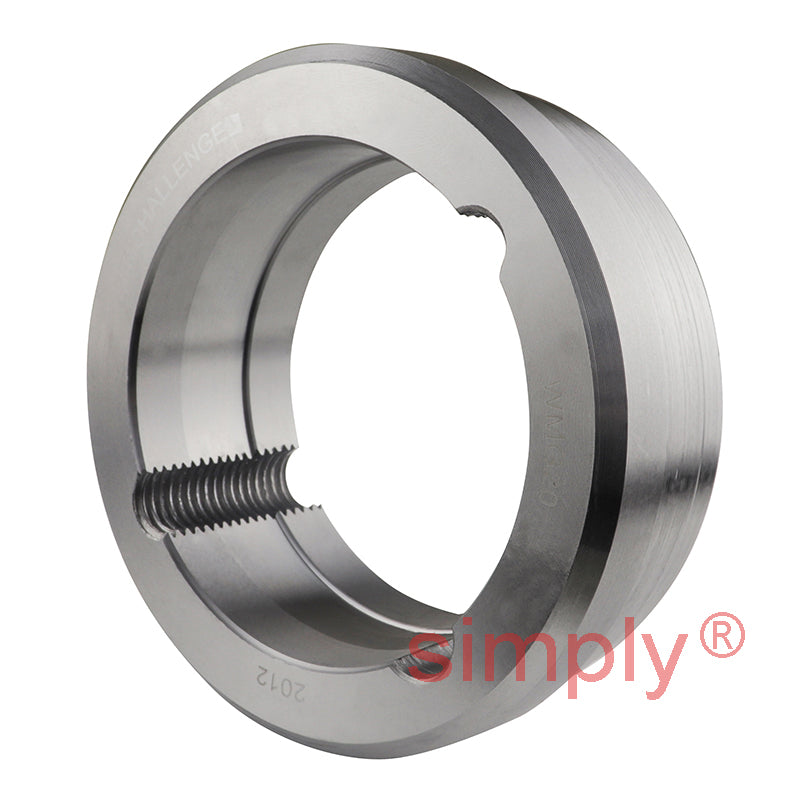

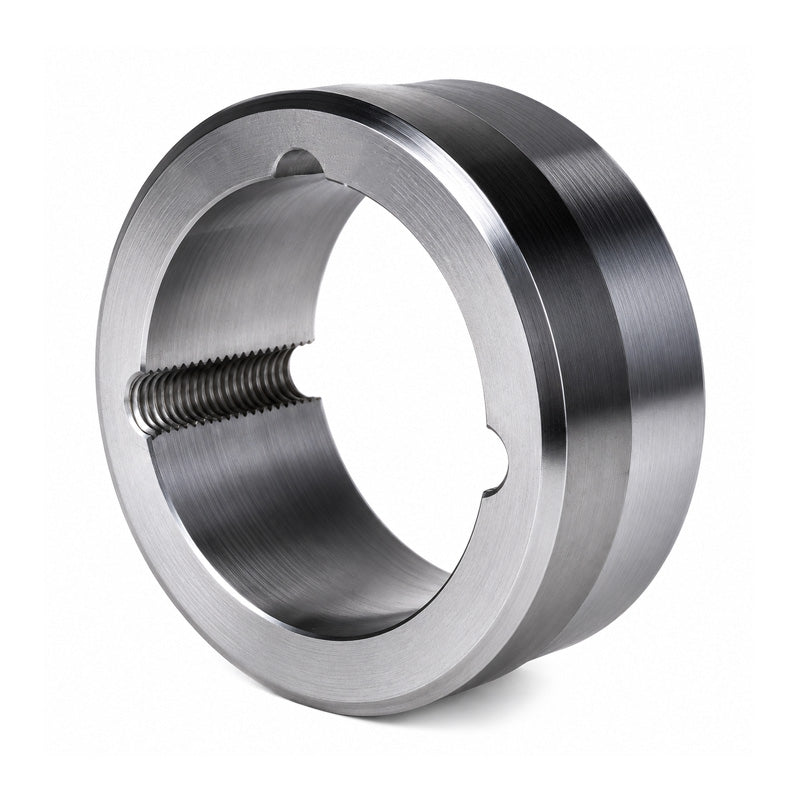

Major Branded WH12 Weld on Hub Shaft Fixing with Tapered Bore
- Regular price
- €42.73 ex VAT
- Sale price
- €42,73
- Regular price
-
In stock
Quantity Price Breaks
3
€38.03
5
€35.89
9
€35.47
19
€35.04
49
€34.61
74
€34.18
99
€32.05
199
€31.62
249
€31.19
499
€30.77
999
€29.91
SKU:
WH12-MB
Major Branded WH12 Weld on Hub Shaft Fixing with Tapered Bore
- Regular price
- €42.73 ex VAT
- Sale price
- €42,73
- Regular price
-
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
Technical
| Hub Reference | = | WH12 |
| Bush Number | = | 1210 |
| A | = | 70mm |
| B | = | 65mm |
| C | = | 64.5mm |
| D | = | 25mm |
| E | = | 9mm |
| F | = | 10mm |
