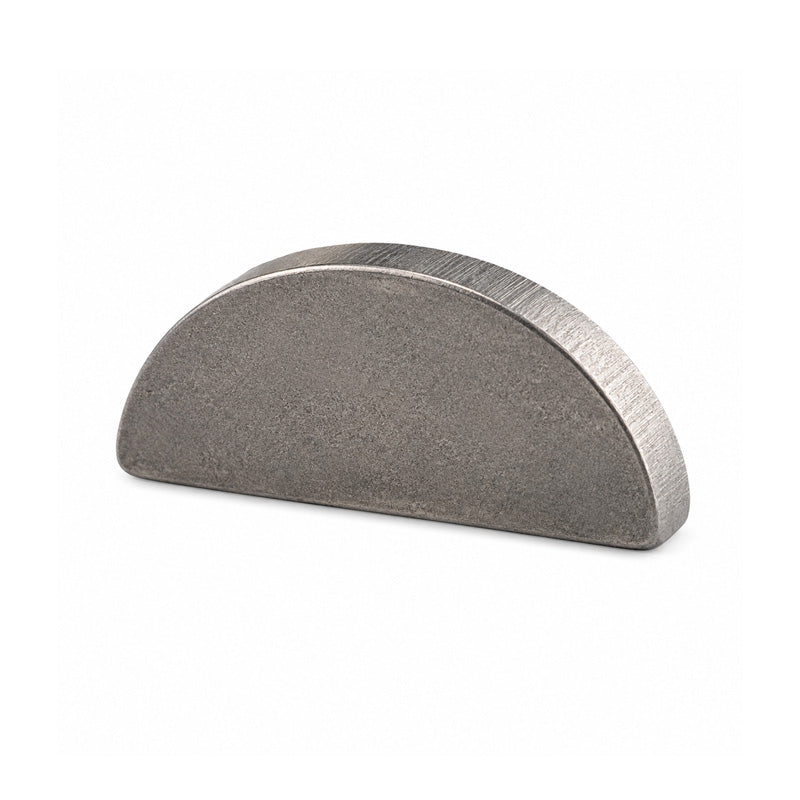

Metric Carbon Steel DIN6888 Woodruff Key 4x6.5x16mm

Carbon Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from carbon steel (DIN6888 or C45+C).
Benefits: Cost-effective, quick removal, quick installation

Brand / Quality:

Simply Key Steel - High Quality

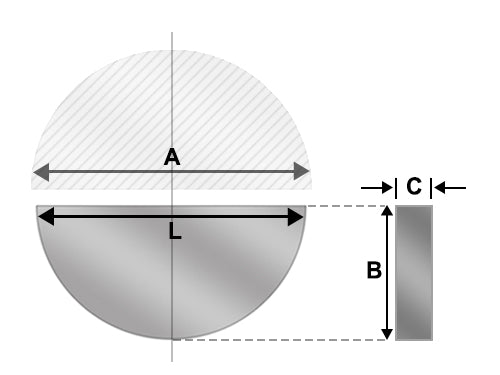

Outside Diameter:

16mm

Width:

4mm

Height:

6.5mm

Length:

15.72mm

Material:

Carbon Steel
