SKU: WLT10-00-500-DURB

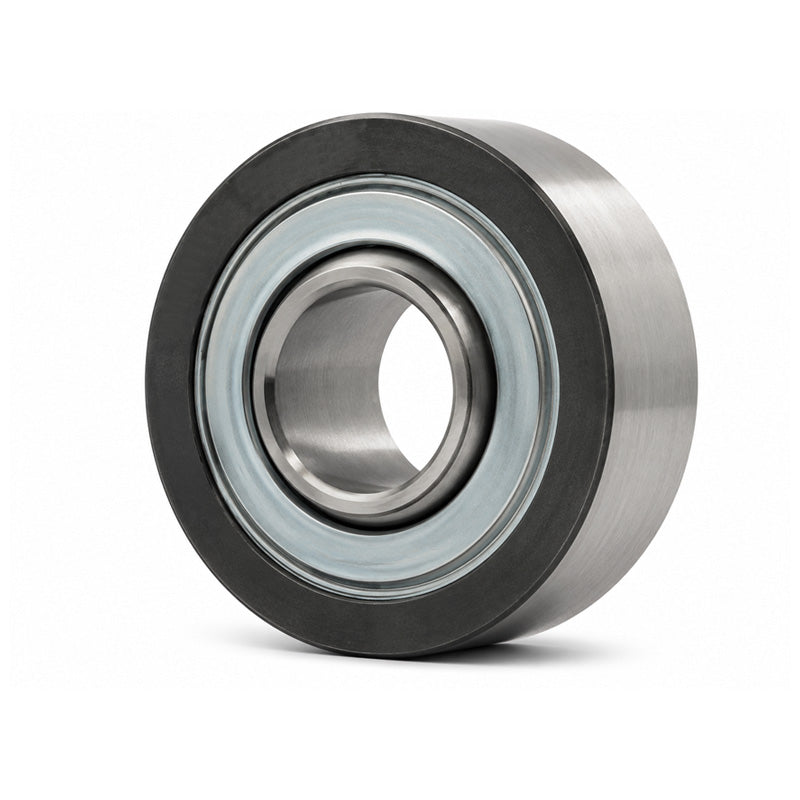

Durbal WLT10-00-500 Steel Spherical Plain Bearing with Cage 10x28x14mm
Durbal WLT10-00-500 Steel Spherical Plain Bearing with Cage 10x28x14mm
Out of stock
Share this product
Description
Description
DURBAL Heavy-Duty Caged Spherical Bearings with Integral Self-Aligning Roller Bearing: These spherical bearings are made from hardened and super finished steel. For high speeds, wide swivelling angles or rotating movements. Suitable for high loads. Low maintenance due to long-term lubrication with food-grade approval. Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing. Temperature range: -45 deg C to +120 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 10mm
Technical
Technical

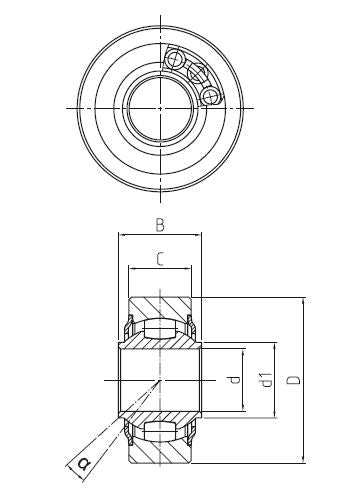

| d | 10mm |
|---|---|
| D | 28mm |
| B | 14mm |
| C | 10.5mm |
| d1 | 12.7mm |
| tilt angle α | 8 deg |
| weight | 0.04kg |
| rotational speed limit n max | 1.225 min-1 |
| basic load rating dyn C | 9.5 kN |
| basic load rating stat Co | 5.4 kN |
| radial clearance CN | 10-30 µm |
