SKU: WMG16-1-MB
Major Branded WMG16-1 Weld on Hub Shaft Fixing with Tapered Bore
- Regular price
- €16.42 ex VAT
- Sale price
- €16,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€14.61
5
€13.79
9
€13.63
19
€13.46
49
€13.30
74
€13.14
99
€12.32
199
€12.15
249
€11.99
499
€11.82
999
€11.49
SKU:
WMG16-1-MB
Major Branded WMG16-1 Weld on Hub Shaft Fixing with Tapered Bore
- Regular price
- €16.42 ex VAT
- Sale price
- €16,42
- Regular price
-
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.

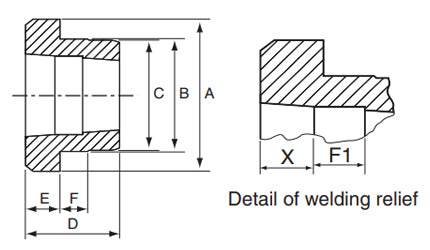

Technical
| Hub Reference | = | WMG16-1 |
| Bush Number | = | 1610 |
| A | = | 83mm |
| B | = | 70mm |
| C | = | 68mm |
| D | = | 26mm |
| E | = | 9mm |
| F | = | 10mm |
| F1 | = | 9mm |
| X | = | 9mm |
