SKU: WMU.9510060

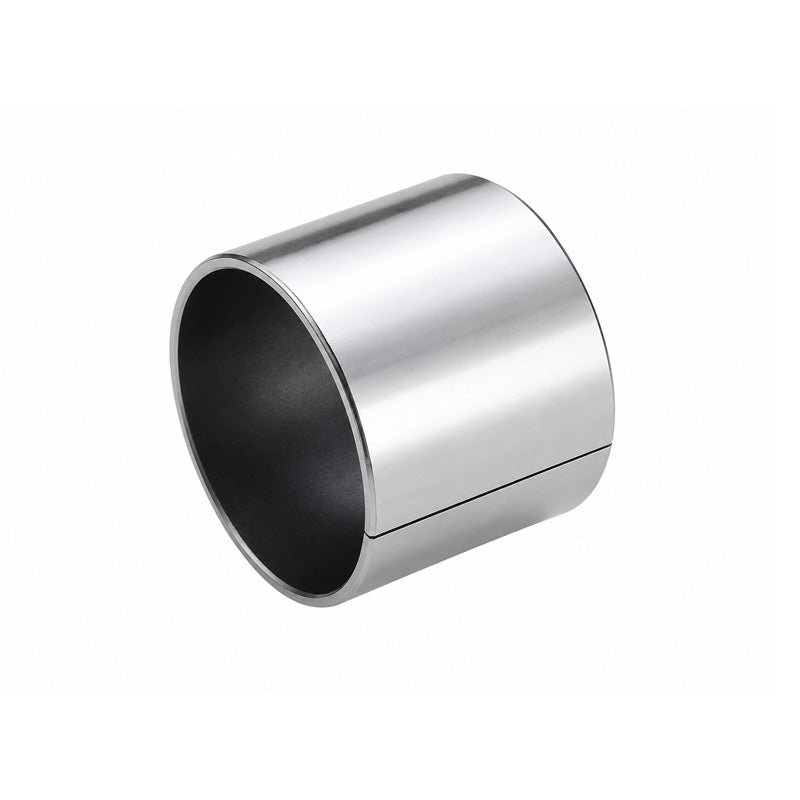

WMU9510060 Metric Wrapped PTFE Lined Plain Bush 95x100x60mm
Out of stock
Description
Wrapped PTFE Lined Plain Bushes:These bushes are suitable for dry-running, low-friction, and low-wear applications. Our range of WMU bushes have excellent sliding characteristics, forming a transfer film that can protect the mating metal surface. These PTFE bushes are made up of a lead-free polymer fibre mixture which forms an initial transfer film, creating an oxide-type solid lubricant on the bearing surface. Sintered bronze powder enhances thermal conductivity and acts as a reservoir for the PTFE mixture, whilst the steel backing ensures high load capacity and efficient heat dissipation. The copper/tin plating adds excellent corrosion resistance, making these wrapped bearings versatile and durable for various applications.
Benefits: Self lubricating, corrosion resistant, chemical resistant
- Brand / Quality:
- Simply Plastic Bushes - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 100mm
- Length:
- 60mm
Technical
| Inside Diameter (d) | 95mm |
|---|---|
| Outside Diameter (D) | 100mm |
| Length (B) | 60mm |
| Overall Length Tolerance | 59.75mm min to 60.25mm max |
| Recommended Housing Size Tolerance | 100mm min to 100.035mm max H7 |
| Shaft Diameter Tolerance | 94.946mm min to 95mm max |
| Inside Diameter when Fitted Tolerance | 95.02mm min to 95.155mm max |
| Inside Chamfers Tolerance | 0.2mm min to 1mm max |
| Outside Chamfers Tolerance | 1.2mm min to 2.4mm max |
| Max PV - Dry | 1.8 N/mm squared x m/s |
| Max PV - Oiled | 2.8 N/mm squared x m/s |
| Max Static Load | 250 N/mm squared |
| Max Dynamic Load | 140 N/mm squared |
| Max Sliding Speed - Dry | 2.5 m/s |
| Max Sliding Speed - With Oil | 5 m/s |
| Operating Temperature | -200 to 280 Deg C |
| Thermal Conductivity | 42 W/mk |
| Coefficient of Friction - Dry | 0.02 to 0.20 |
| Coefficient of Friction - With Oil | 0.02 to 0.15 |
| Recommended Shaft Finish (Ra) | 0.04 max N5 |
| Recommended Shaft Hardness (HB) | 200 min |
