SKU: WSZC40-JCS

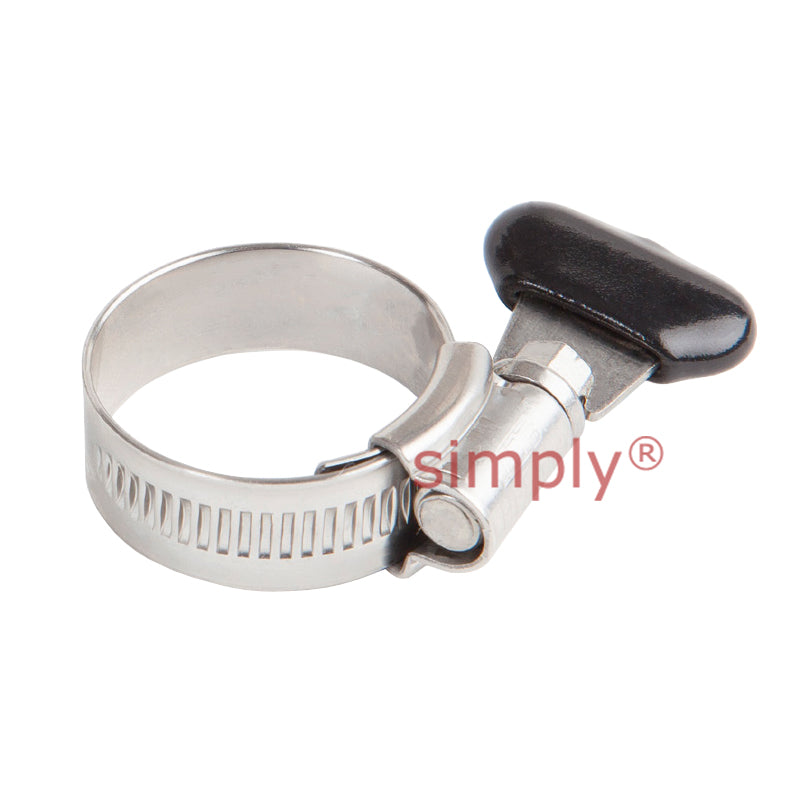

JCS WSZC40 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 30-40mm Band Width 13mm
- Regular price
- €5.43 ex VAT
- Sale price
- €5,43
- Regular price
-
In stock
Quantity Price Breaks
3
€4.83
5
€4.56
9
€4.51
19
€4.45
49
€4.40
74
€4.34
99
€4.07
199
€4.02
249
€3.96
499
€3.91
999
€3.80
SKU:
WSZC40-JCS
JCS WSZC40 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 30-40mm Band Width 13mm
- Regular price
- €5.43 ex VAT
- Sale price
- €5,43
- Regular price
-
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
Technical

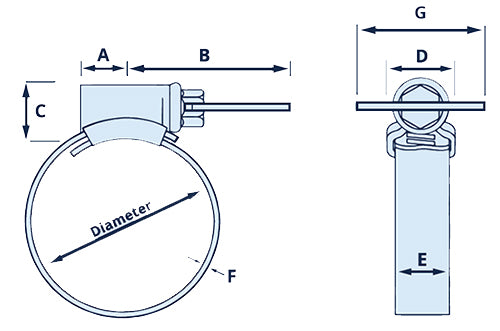

| BS No. | = | 40 |
| Adjustment Range (mm) | = | 30-40mm |
| Adjustment Range (inch) | = | 1-1/8 - 1-5/8 inch |
| A | = | 8mm |
| B | = | 32mm |
| C | = | 12mm |
| D | = | 15mm |
| E | = | 13mm |
| F | = | 0.9mm |
| G | = | 24mm |
| Recommended Torque Nm | = | 5Nm |
| Recommended Torque lb-in | = | 45lb-in |
